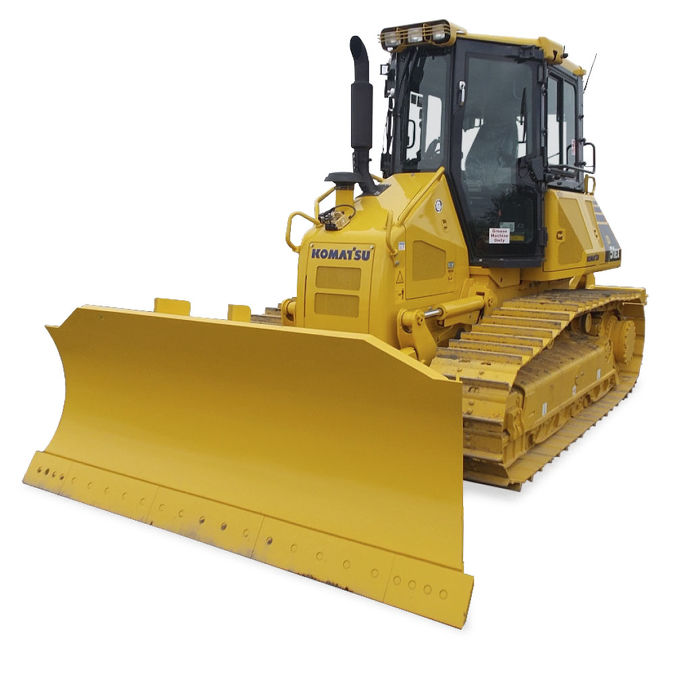

Komatsu D51EX-22
The Komatsu D51EX-22 dozer offers reliability, versatility - and the best value for your
money. Their hydraulics, power train and frame, and all other major components are directly
engineered by Komatsu, and work together to deliver optimal production levels. A super-slant
nose and rear mounted cooler make them unique on the market today.
Engine Model Komatsu SAA6D107E-1 No. Of Cylinders 6 Bore 107 mm Stroke 124 mm Displacement 6.69 L Rated rpm 2,200 rpm Engine Power 99.0 kW / 133 HP At 2,200 rpm Fan Drive Type Hydraulic Travel Speed 0 - 9.0 km/h Operating Weight (Approx.) 12,710 kg Fuel Tank 270 L Engine Oil 20 L Hydraulic Tank 63 L Blade Capacity 2.7 - 2.9 m³ Minimum Turning Radius (Counter-Rotation) 1.81 m
