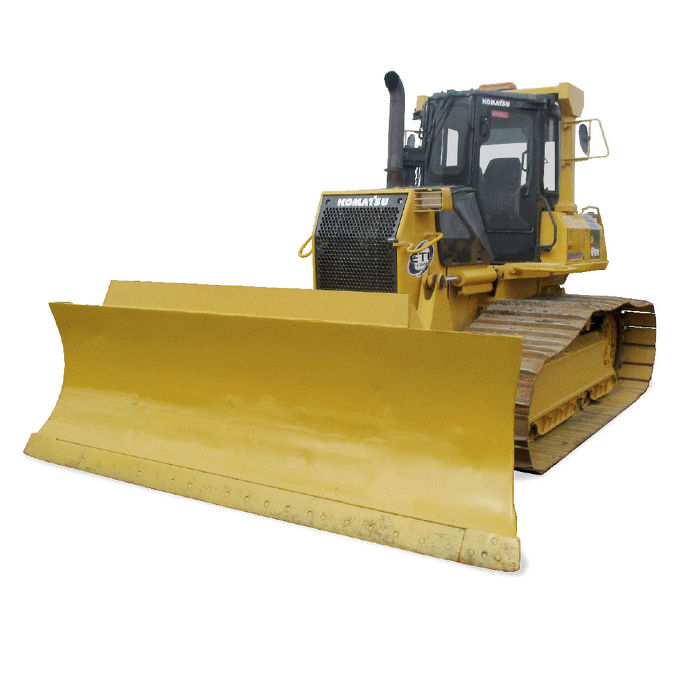

Komatsu D61PX-15
- Komatsu SA6D114E-2 turbocharged after-cooled diesel engine provides an output of 116 kW 155 HP with excellent productivity.
- Gull-wing engine slide doors for easy and safer servicing.
- Blade tilt lines completely protected.
- Komatsu Torqflow transmission offers single lever control of speed (3 forward and 3 reverse) and directional changes.
- Forward mounted pivot shafts isolate final drives from blade loads.
- Wet, multiple disc brakes eliminates brake-disc adjustments for maintenance-free operation
- Hydrostatic Steering System (HSS) provides smooth, quick and powerful control in varying ground conditions.
Engine Model Komatsu SA6D114E-2 No. Of Cylinders 6 Bore 114 mm Stroke 135 mm Displacement 8.27 L Rated rpm 1800 rpm Engine Power 116 kW / 155 HP At 1800 rpm Fan Drive Type Hydraulic Travel Speed 0 - 9.4 km/h Operating Weight (Approx.) 18,140 kg Fuel Tank 390 L Engine Oil 19 L Coolant 44 L Blade Capacity 3.8 m³ Minimum Turning Radius (Counter-Rotation) 2.2 m
