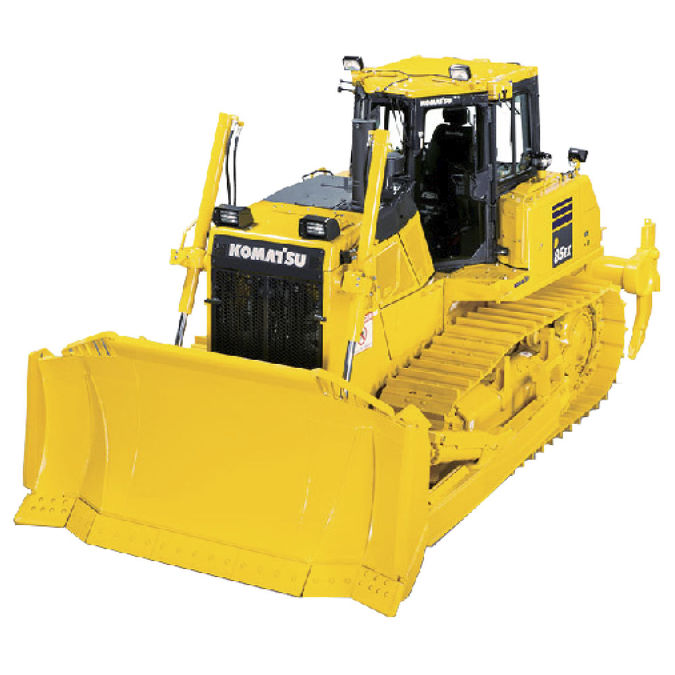

Komatsu D85EX-15EO
- SAA6D125E-5 turbocharged after-cooled
diesel engine provide an output of 197 kW 264 HP
with excellent productivity. - Hydrostatic driven engine cooling fan
controlled automatically, reduces fuel consumption
and operating noise levels. - Simple hull frame
and monocoque track frame
with pivot shaft for greater
reliability. - Extra-low machine profile provides excellent
machine balance and low center of gravity. - Low-drive, long-track, undercarriage
ensures outstanding grading ability and stability. - Hydrostatic Steering System (HSS)
provides smooth, quick and powerful control in
various ground conditions.
Engine Model Komatsu SAA6D125E-5 No. Of Cylinders 6 Bore 125 mm Stroke 150 mm Displacement 11.04 L Rated rpm 1900 rpm Engine Power 199 kW / 266 HP At 1900 rpm Fan Drive Type Hydraulic Travel Speed 3.3 - 10.1 km/h Operating Weight (Approx.) 28,100 kg Fuel Tank 490 L Engine Oil 38 L Lubrication System - Method Gear Pump, Force Lubrication Lubrication System - Filter Full Flow Minimum Turning Radius (Counter-Rotation) 1.99 m
