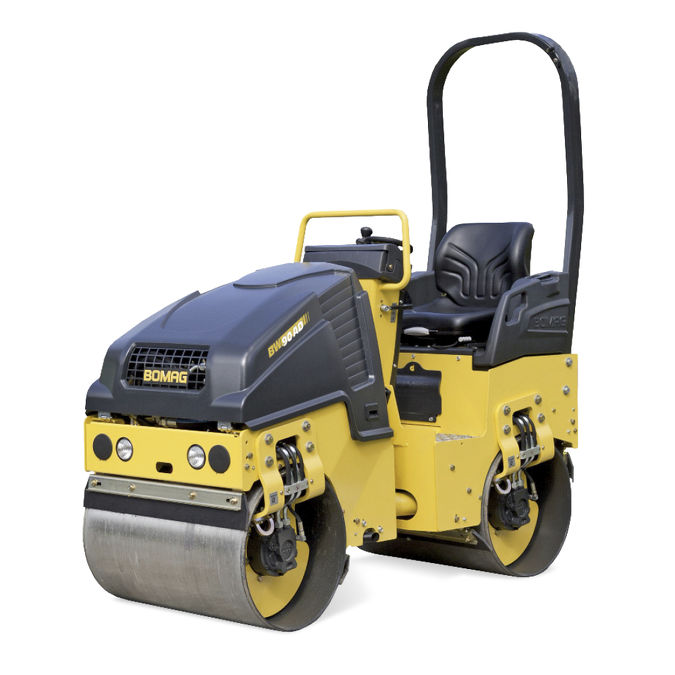

Bomag BW90 AD-5
ROBUSTLY PRODUCED - The articulation joint is not
welded to the frame and is easily
accessible in case of emergency.
All machines are equipped with
the crabwalk function.
COMFORTABLE TO OPERATE - The spacious operator‘s platform with a compact steering wheel has a robust dashboard with
large switches. Intuitive operation via a soft-responsive control lever and an excellent view
of the drum edges ensure a relaxed working
environment.
WIND-PROTECTED SPRINKLER - nozzles ensure
even wetting of the bandages in all
conditions.
Weight 1,900 kg Transport Width 956 mm Fuel 30 L Water 100 L Type of Sprinkling Pressure Frequency 42/63 Hz Rollers Ø 580 mm Engine Manuf. Kubota Engine Type D 902 No. of Cylinders 3 Engine Power 15.1 kW / 20.2 hp Transport Length 2194 mm Transport Height 2304 mm Travel Speed 0 - 10 km/h Roller Width 900 mm Static Linear Load 8.9 kg/cm
