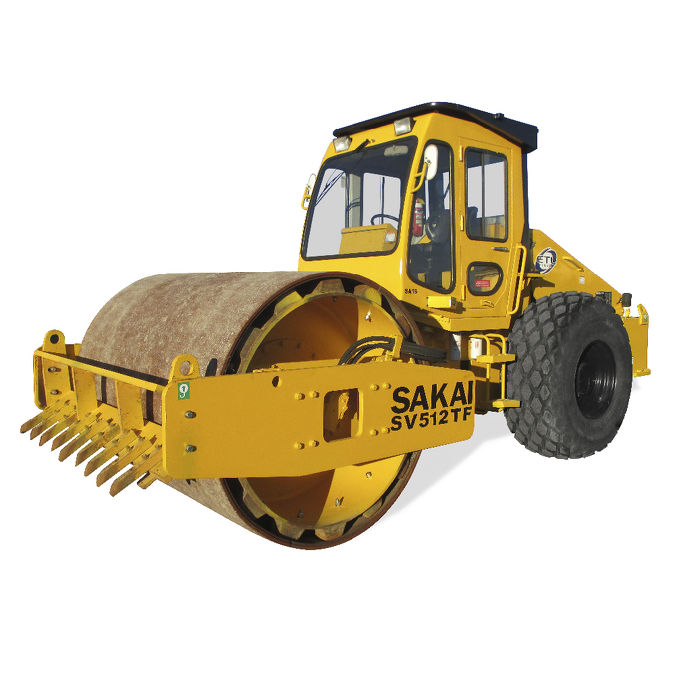

Sakai SV512TF
Excellent performance
- Well-balanced front and rear weight distribution contributes to excellent traction and slope climbing ability.
- The amplitude of the largest in the world class carries out greatest compaction.
Easy operation and riding comfort
- Despite powerful vibration, the chassis and operator are fully protected from vibration thanks to SAKAI's patented, unique vibration isolation system.
- Due to the rubber isolator mounted operator deck, the operator's riding comfort is excellent, and electrical instruments and gauges are free from vibration.
Excellent serviceability
- The engine and hydraulic components are enclosed in a compartment. The engine hood opens fully for easy access to engine and hydraulic components for service and maintenance.
- Large ball bearing and taper bearings are employed in the centerpin mechanism to prolong service life and lubrication intervals.
Operating Weight 13,000 kg Load On Front 7,950 kg Load On Rear 5,050 kg Overall Length 5,750 mm Overall Width 2,300 mm Rolling Width 2,130 mm Wheelbase 2,970 mm Engine Perkins Engine Model 1104C-44TA Diesel Engine With Turbo Charger Engine Type Water-cooled, 4-cycle, 4-cylinder in-line, vertical mounted overhead valve, direct injection type Vibrating System Transmission Hydrostatic Transmission Vibrating System Vibrator Eccentric shaft
